Installation method

Floor standing

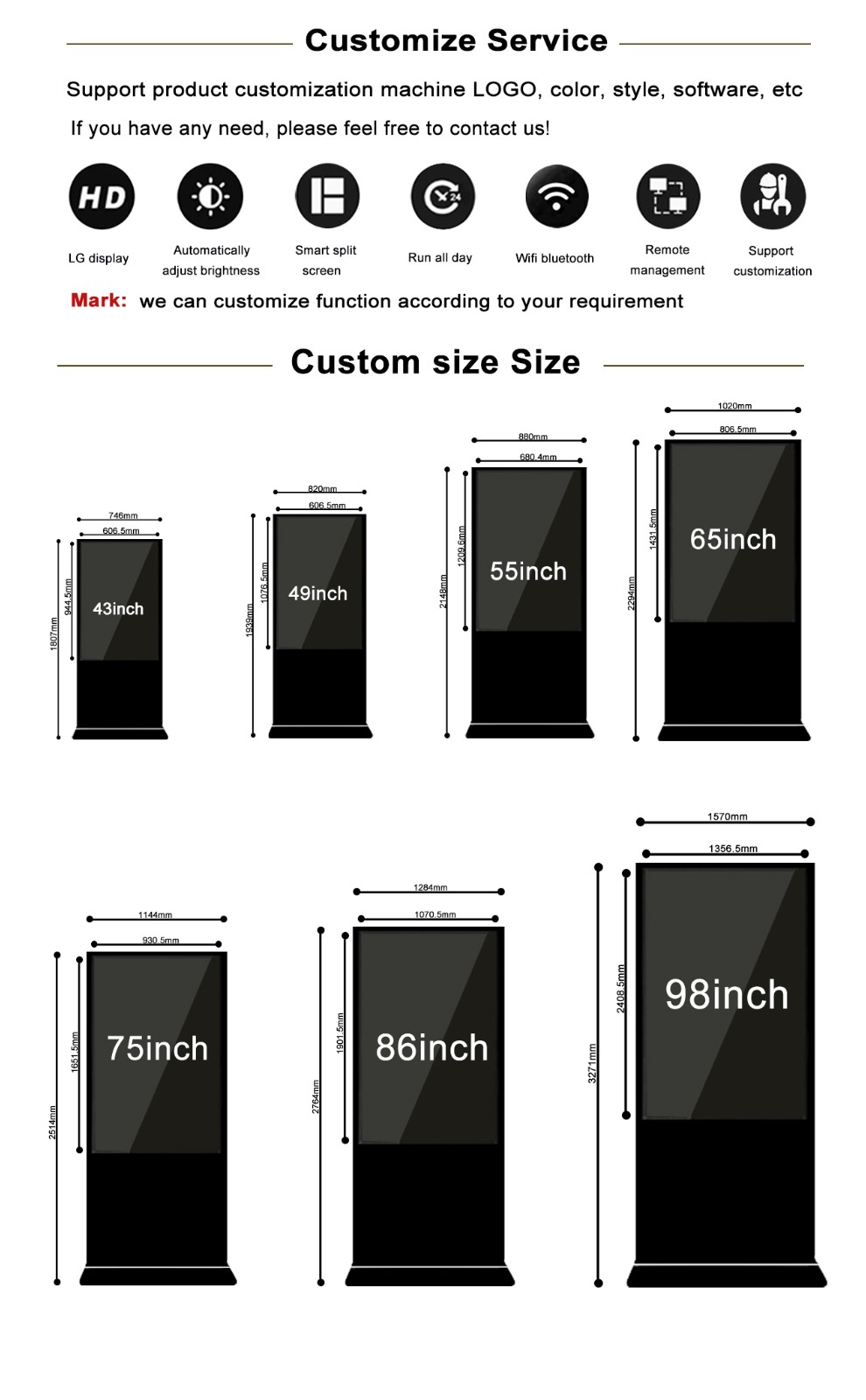

Custom size

32"，43"，49"，55"，65"，75"，86"

Appearance color

Silver or optional

Material & Corrosion protection

   1.5~2MM galvanized sheet, the surface is sprayed with outdoor powder

Glass

6mm AG anti-glare tempered glass

Protection level

IP55/ IP65 （Optional）

LCD screen

Panel type

LCDPanel

Display ratio

16:9

Viewing angle

178

Response time

6ms

Resolution

1920（RGB）×1080（UHD）/3840（RGB）×2160（UHD）

Contrast ratio

3000:1

Brightness

2000 nits

Color

 16.7 M

Service life

 More than 50000 hours

Touch（Optional configuration）

Type

Ten point nano touch

Touch accuracy

±2mm

Response time

<6ms

Refresh rate

120FPS

Working temperature

-30℃ to +60℃

Humidity

0%-95%RH（No condensation）

Player

Operation system（optional）

Android 7.1

Windows X86

Main Board

Android RK3288

Windows QM9500-I3

Memory

2G

4G

Flash

8G（ support  32G）

16G（ support 128G）

Main frequency

Six core 1.8GHz

Network support

Ethernet、WiFi

3G/4G module function （optional, default none）

Bluetooth

Support onboard Bluetooth function （optional, default none）

File system

Operating system

Windows I5 and above / Android 7.1 and above

Languages

Simplified Chinese, traditional Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, polish, Czech and other language

Basic interface （Internal interface）

USB2.0 Interface

×2

VGA output

×1

HDMI output (optional)

×1

MicroPhone

×1

RTC real time clock

1 clock battery holder

AV input

×4

Audio output

Power amplifier output, can directly drive 2*10W/8Ω speakers

SD card

1 standard SD card slot, maximum support 32GB

Working environment

Temperature control

Air cooling（air conditioning optional, cost extra）

Operating temperature

-30°C - +50°C（air conditioning）

Working humidity

10% to 95%

Storage temperature

-20°C to 60°C

Storage humidity

  10%～85%

Power

Input voltage

AC220V

Normal working power consumption

≤280W

Standby power consumption

＜30W

Certificate

Certificate

 CE, FCC
