32"43"49"55"65"75"86" inch Wall Mounted LCD Outdoor Digital Signage
32"43"49"55"65"75"86" inch Wall Mounted LCD Outdoor Digital Signage
PDF Downloads
PRODUCT FEATURES
MOQ: 1 Sets

Produce Period: 25 days

Supply Ability: 1000 Sets per Month

Nearest Port: Shenzhen,Guangzhou


Product Details


                                         Parameter

Structure

Installation method

Wall mounted: horizontal screen / vertical screen

Custom size

32"43"49"55"65"75"86"

Appearance color

Silver or optional

Material & Corrosion protection

1.5~2MM galvanized sheet, the surface is sprayed with outdoor powder

Glass

6mm AG anti-glare tempered glass

Protection level

IP55/ IP65 Optional

LCD screen

Panel type

LCDPanel

Display ratio

16:9

Viewing angle

178

Response time

6ms

Resolution

1920RGB×1080UHD/3840RGB×2160UHD

Contrast ratio

3000:1

Brightness

2500 nits

Color

16.7 M

Service life

More than 50000 hours

TouchOptional configuration

Type

Ten point nano touch

Touch accuracy

±2mm

Response time

<6ms

Refresh rate

120FPS

Working temperature

-30 to +60

Humidity

0%-95%RHNo condensation

Player

Operation systemoptional

Android 7.1

Windows X86

Main Board

Android RK3288

Windows QM9500-I3

Memory

2G

4G

Flash

8G support  32G

16G support 128G

Main frequency

Six core 1.8GHz

Network support

EthernetWiFi

3G/4G module function optional, default none

Bluetooth

Support onboard Bluetooth function optional, default none

File system

Operating system

Windows I5 and above / Android 7.1 and above

Languages

Simplified Chinese, traditional Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, polish, Czech and other language

Basic interface Internal interface

USB2.0 Interface

×2

VGA output

×1

HDMI output (optional)

×1

MicroPhone

×1

RTC real time clock

1 clock battery holder

AV input

×4

Audio output

Power amplifier output, can directly drive 2*10W/8Ω speakers

SD card

1 standard SD card slot, maximum support 32GB

Working environment

Temperature control

Air coolingair conditioning optional, cost extra

Operating temperature

-30°C - +50°Cair conditioning

Working humidity

10% to 95%

Storage temperature

-20°C to 60°C

Storage humidity

 10%85%

Power

Input voltage

AC220V

Normal working power consumption

≤380W

Standby power consumption

30W

Certificate

Certificate

 CE, FCC

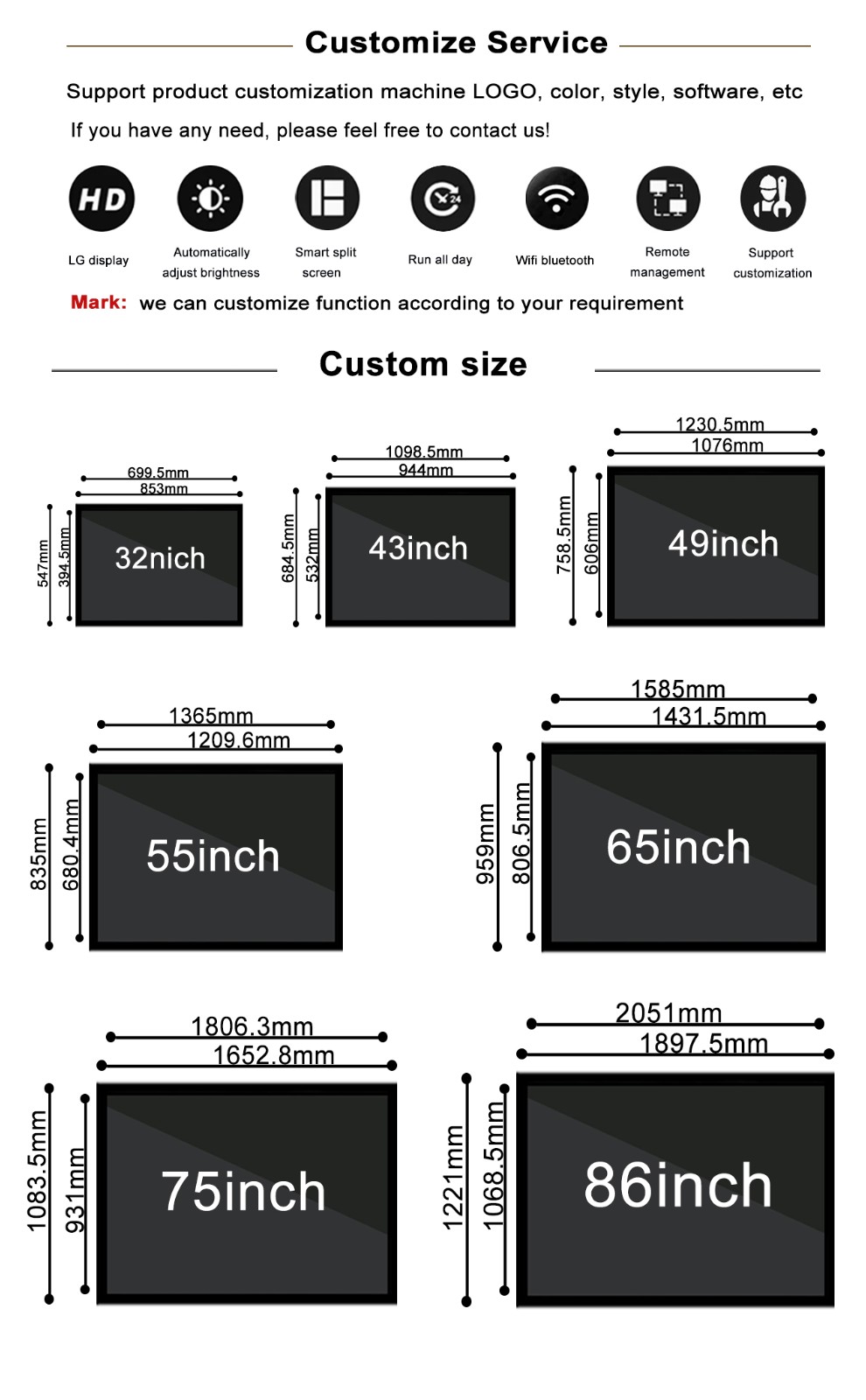

 Standard  Lcd displayExterior SizeDisplay size
                        32"853*547*161mm 699.5mm(H)*394.5mm(V)
                         43"1098.5*684.5*175.5mm  944mm(H)*532mm(V)
                         49"1230.5*758.5*175.5mm1076mm(H)*606mm(V)
                         55"1365*835*171mm  1209.6mm(H)*680.4mm(V)
                         65"1585*959*171.5mm1431.5mm(H)*806.5mm(V)
                         75"1806.3*1083.5*180mm1652.8mm(H)*931mm(V)
                         86"2051*1221*180mm1897.5mm(H)*1068.5mm(V)
